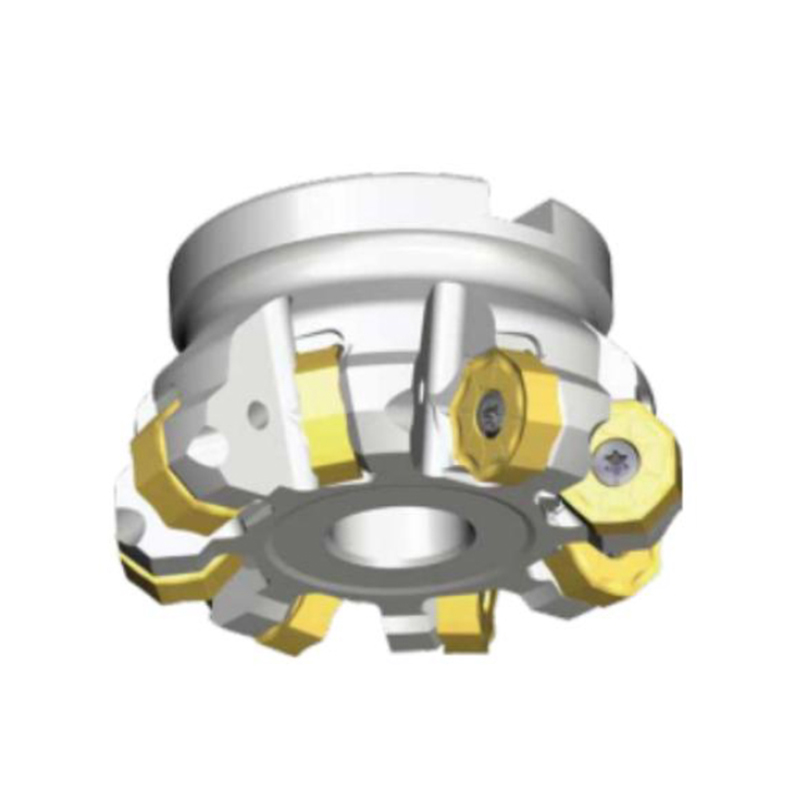

DE SERIES：CFM43ON-07 Face Milling Cutter

EXEMPLUM

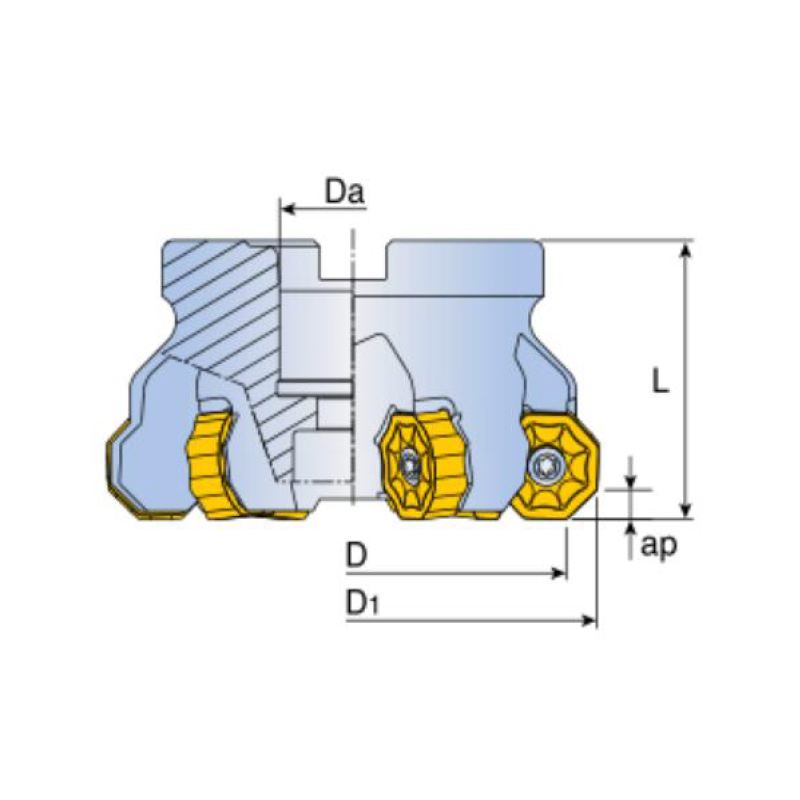

DIMENSIONEE

CONNE

CTOR

KG

INSERT

D

D1

L

ap

Da

CFM430N-563A22R-07

5

63

75.2

50

4

22

A

0.8

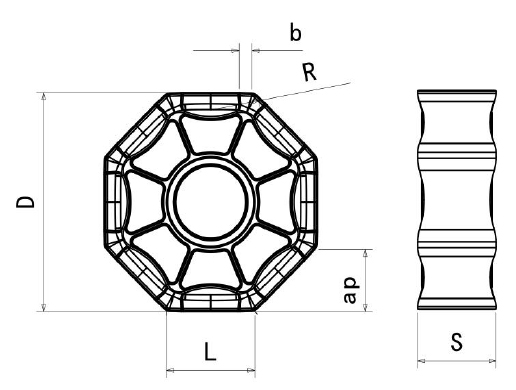

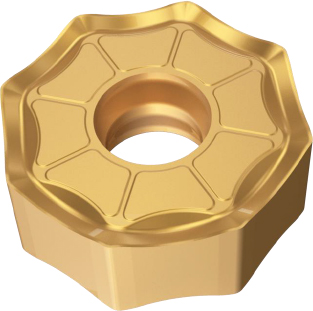

ONKX 0706

CFM430N-680A27R-07

6

80

92.2

50

4

27

A

1.2

CFM430N-780A27R-07

7

80

92.2

50

4

27

A

1.2

CFM430N-7100B32R-07

7

100

112.2

60

4

32

B

2.5

CFM430N-8100B32R-07

8

100

112.2

60

4

32

B

2.5

CFM430N-8125B40R-07

8

125

137.2

63

4

40

B

3.0

CFM430N-10125B40R-07

10

125

137.2

63

4

40

B

3. 1

CFM430N-10160C40R-07

10

160

172.2

63

4

40

C

5.2

CFM430N-12160C40R-07

12

160

172.2

63

4

40

C

5.4
