R/LCR Fine Boring Adapter Tools

Bene taediosum unit

Contactus nunc

PREV：CLF Fine Boring Tools
DEINDE:Proximum productum non

QUALITAS
QUAESTIO

FEAURES

Fine taediosum unitatis duae modi institutionis: angulus institutionis et angulus r*ecti institutionis
Adaequat praecisionem CC/TC/TP radius0.01/div

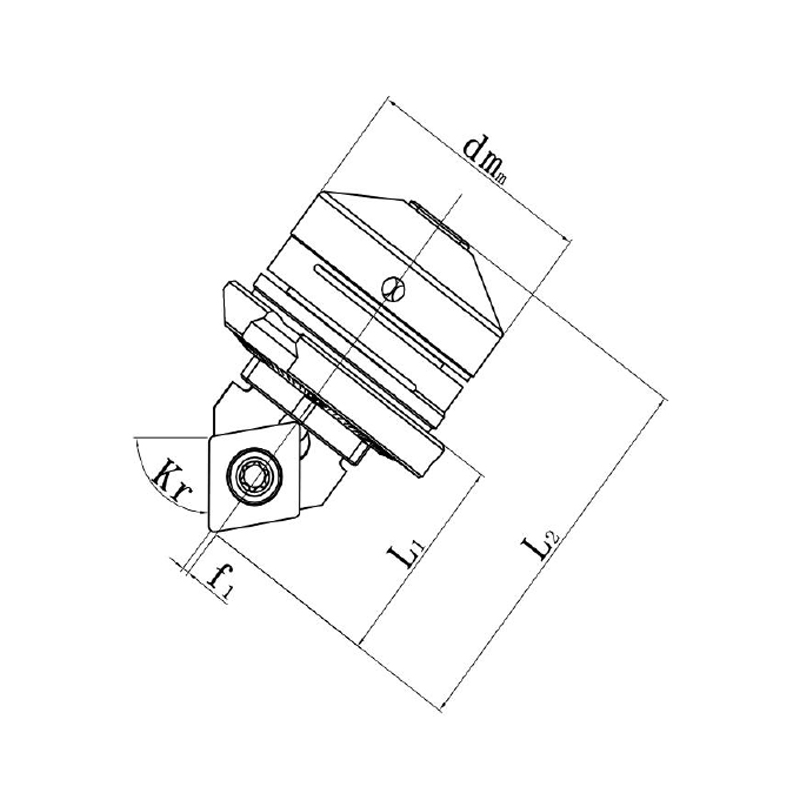

EXEMPLUM EXEMPLUM	L/R	institutionem	DIMENSIONES							INSERT
EXEMPLUM EXEMPLUM	L/R	type	Kr	dmm	LI	L2	fl***	Dmin	入	INSERT
RCR-31-CC06	R	Angulus institutionem	90。	16	14.3	25. 15	0.45	25.5	-3°	CC…0602
RCR-31-TC06				16	14.3	25.0	0.2	24.8	0°	TC…06T1
RCR-32-TC09				20	19. 1	33.7	0.9	32.5	0°	TC…0902
RCR-32-TP09				20	19. 1	33.7	0.9	32.5	0°	TP…0902
RCR-33-TC11				22	23.0	45.3	1.1	42.0	0°	TC…1102
RCR-33-TP11				22	23.0	45.3	1.1	42.0	0°	TP…1103
RCR-34-TC16				32	33.3	62.3	1.2	59.4	0°	TC…16T3
RCR-34-TP16				32	33.3	62.3	1.2	59.4	0°	TP…16T3
LCR-31-CC06	L			16	14.3	25. 15	0.45	25.5	-3°	CC…0602
LCR-31-TC06				16	14.3	25.0	0.2	24.8	0°	TC…06T1
LCR-32-TC09				20	19. 1	33.7	0.9	32.5	0°	TC…0902
LCR-32-TP09				20	19. 1	33.7	0.9	32.5	0°	TP…0902
LCR-33-TC11				22	23.0	45.3	1.1	42.0	0°	TC…1102
LCR-33-TP11				22	23.0	45.3	1.1	42.0	0°	TP…1103
LCR-34-TC16				32	33.3	62.3	1.2	59.4	0°	TC…16T3
LCR-34-TP16				32	33.3	62.3	1.2	59.4	0°	TP…16T3

λ： angulus：

diametri praecisio 0.02/div, RADIUS 0.01/div.

Pro conventional odiosis, iubes a sinistra manu denique odiosis unitas

f1, pro obtinendo vittis acutis r = 0 et cochlea clamping in fibulationibus

Dmin：Minimum foramen diametri maximum nasum radii fundatur

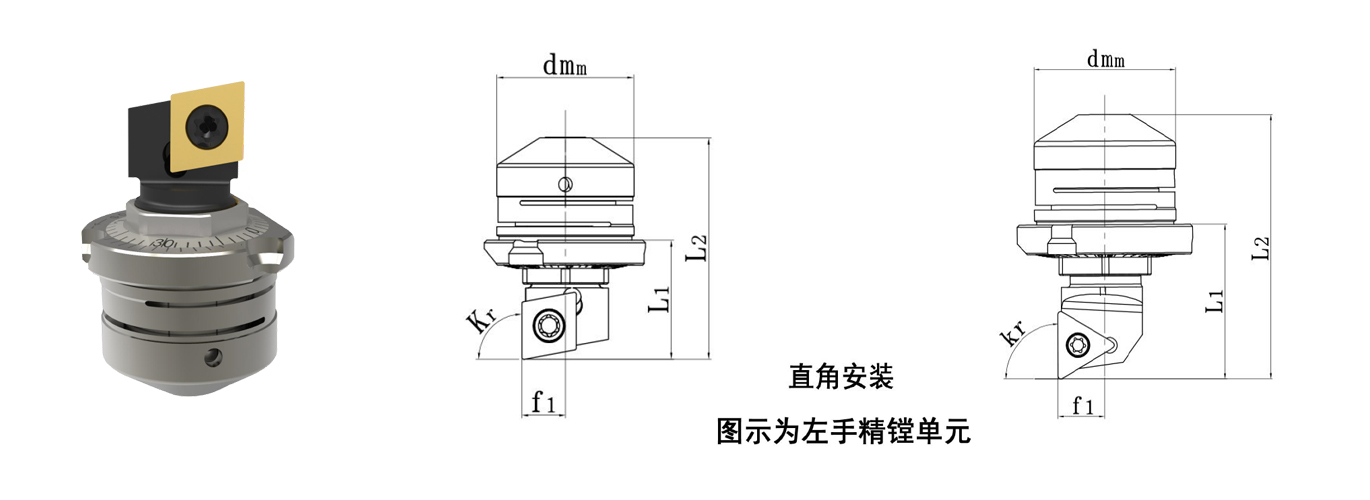

EXEMPLUM EXEMPLUM	L/R	genus institutionem	DIMENSIONES							INSERT
EXEMPLUM EXEMPLUM	L/R	genus institutionem	Kr	dmm	LI	L2	fl	Exhaurire	入	INSERT
RCR-11-CC06	DEXTRA	Rectus instal	90°	16	13.3	24. 1	5. 1	27	-3°	CC- ••0602
RCR-12-TC09				20	18.3	32.9	6.3	36.5	0°	TC- •• 0902
RCR-12-TP09				20	18.3	32.9	6.3	36.5	0°	TP- •• 0902
RCR-13-TC11				22	22. 1	44.3	7.2	48.5	0°	TC- •• 1102
RCR-13-TP11				22	22. 1	44.3	7.2	48.5	0°	TP- •• 1103
RCR-14-TC16				32	32.0	62.7	10.3	68.4	0°	TC- •• 16T3
RCR-14-TP16				32	32.0	62.7	10.3	68.4	0°	TP- •• 16T3
LCR-11-CC06	EGRESSUS			16	13.3	24. 1	5. 1	27	-3°	CC- ••0602
LCR-12-TC09				20	18.3	32.9	6.3	36.5	0°	TO- •• 0902
LCR-12-TP09				20	18.3	32.9	6.3	36.5	0°	TP- •• 0902
LCR-13-TC11				22	22. 1	44.3	7.2	48.5	0°	TO- •• 1102
LCR-13-TP11				22	22. 1	44.3	7.2	48.5	0°	TP- •• 1103
LCR-14-TC16				32	32.0	62.7	10.3	68.4	0°	TO- •• 16T3
LCR-14-TP16				32	32.0	62.7	10.3	68.4	0°	TP- •• 16T3

ACCESSORY

INSERTS EXEMPLUM	COCHLIA	CONVECTIO	obfirmatis sera	CONVECTIO
INSERTS EXEMPLUM
CC-…0602	CSC2560	CTS08W	CSC3080	CTS10W
TC-…06T1	CSS2005	CTS06W	CSC3080	CTS10W
TC-…0902	CSC2250	CTS07W	CSC3080	CTS10W
TP -…0902	CSC2560	CTS08W	CSC3080	CTS10W
TC-…1102	CSC2560	CTS08W	CSC4090	CTS15W
TP-…1103	CSC3080	CTS10W	CSC4090	CTS15W
TC-…16T3	CSC4090	CTS15W	CSC5012	CTS20W
TP-…16T3	CSC4090	CTS15W	CSC5012	CTS20W

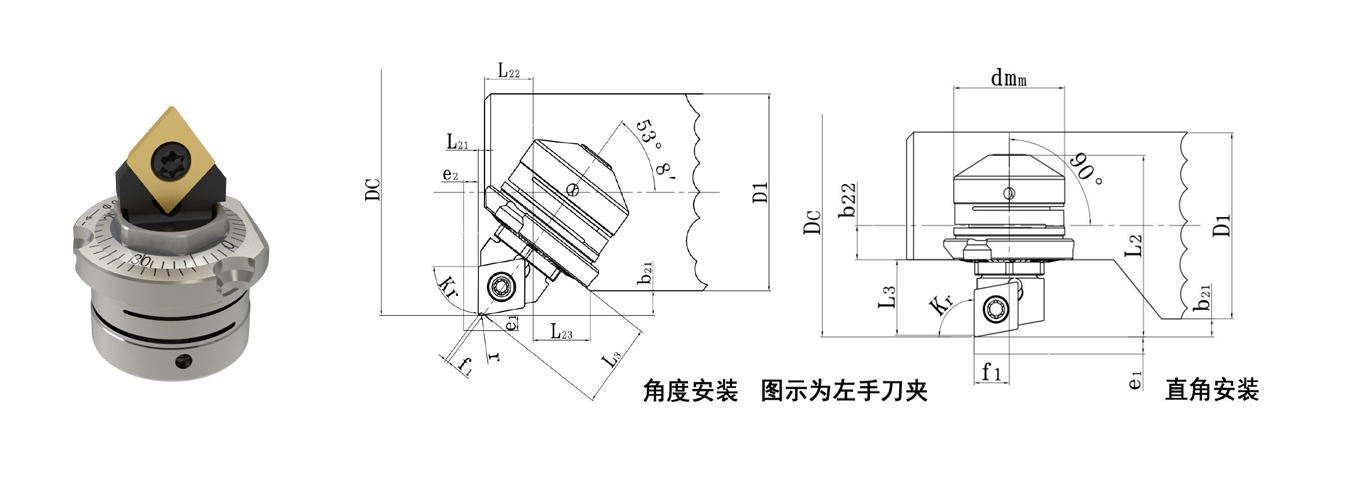

INSTA LL	INSERT	DIMENSIONES
		r	D1 min	Dc min	b21	el max	e2 max	b22	L3 min	L21	L22	L23	fl
Kr= 90。	C/T…06	0.2	26	27.9	0.6	2.5	-	3.6	9.8	-	-	-	5.1
		0.4		27.6	0. 55				9.6
		0.8		27.0	0.5				9.1
	T …0902	0.2	34.5	37.4	1.45	3.5	-	4. 55	13. 95	-	-	-	6.3
		0.4		37. 1	1.3				13.6
		0.8		36.5	1.0				12.9
	T…11	0.2	46.5	49.4	1.45	6	-	7. 75	16. 75	-	-	-	7.2
		0.4		49. 1	1.3				16.4
		0.8		48.5	1.0				15.7
	T …16T3	0.4	67	69.6	1.3	10	-	9.4	25.0	-	-	-	10.3
		0.8		69.0	1.0				24.3
		1.2		68.4	0.7				23.6
Kr= 90。	C-0602	0.2	22	26.2	1.7	2	1.5	-	11.0	0.5	6.6	9. 55	0.4
		0.4		25.9	1.65				10.7				0.4
		0.8		25.3	1.6				10. 1				0.45
	T …06T1	0.2	22	25.7	1.5	2	1.5	-	10.9	0.5	6.6	9. 55	0.4
		0.4		25.4	1.45				10.6				0.4
		0.8		24.8	1.4				10.0				0.45
	T …0902	0.2	28.5	33.4	2. 45	2.8	2.1	-	14.9	0.5	9.4	12.15	0. 95
		0.4		33. 1	2.3				14.5				1.0
		0.8		32.5	2.0				13.7				1.1
	T…11	0.2	38	42.9	2. 45	4.8	3.6	-	17.6	0.5	11.2	14.85	1. 15
		0.4		42.6	2.3				17.2				1.2
		0.8		42.0	2.0				16.4				1.3
	T …16T3	0.4	55	60.6	2.8	8	6	-	26.2	0.5	16.65	23.7	1.3
		0.8		60.0	2.5				25.4				1.4
		1.2		59.4	2.2				24.6				1.5

De consultatione potes numerare

Cum Plus XX annis assidua nostra turma nisus, in unum summum finem professio praebitorum et societatis in Sinis crevimus. Chai Secans instrumenta instrumentorum stricte procedendi ut protegendi et audiendi materiarum rudium praebitorum, ineuntes probationes materiales et comparationis materiales advenientes; Primae classis productio processus consilium et programmata moderatio singulas productorum magis stabilis et depravabilis efficiunt, et efficiens imperium efficiens obtinent. OEM/ODM available.

Sequentia notitia adiuvat ut plus intelligas:

•Industria experientiam: Per XX annos
•Productum Category: 10000+
•Numerus diplomatum: 41
• Plant area: 3000m²+
• Technicos: 30+
• Annua productio capacitatis: 90 decies centena (100,000 chalybea producta;
X decies laminae)
