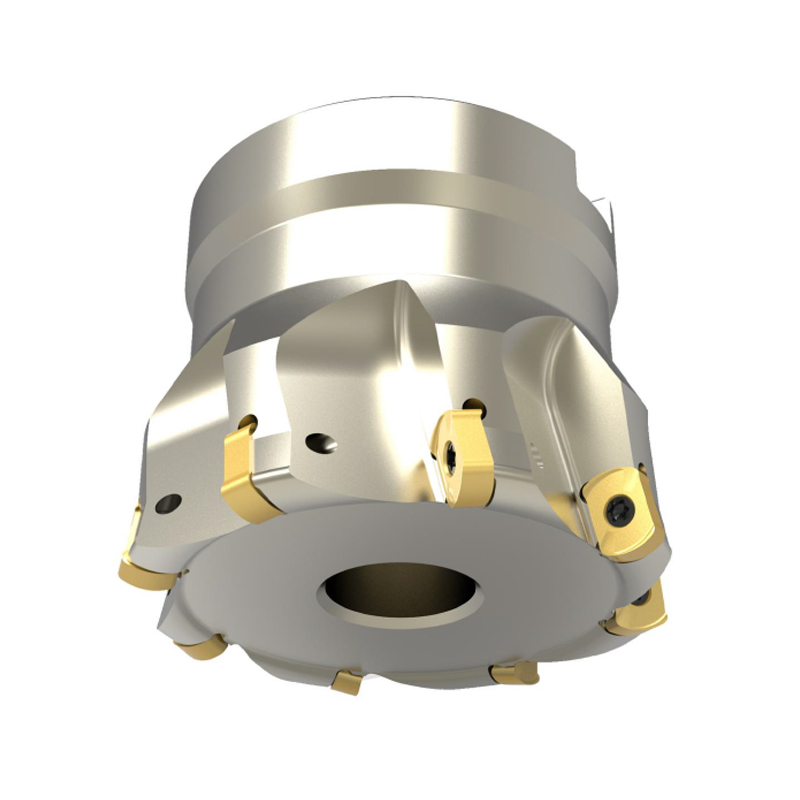

High CIBARIUM series：TFMBL Milling Cutter

EXEMPLUM

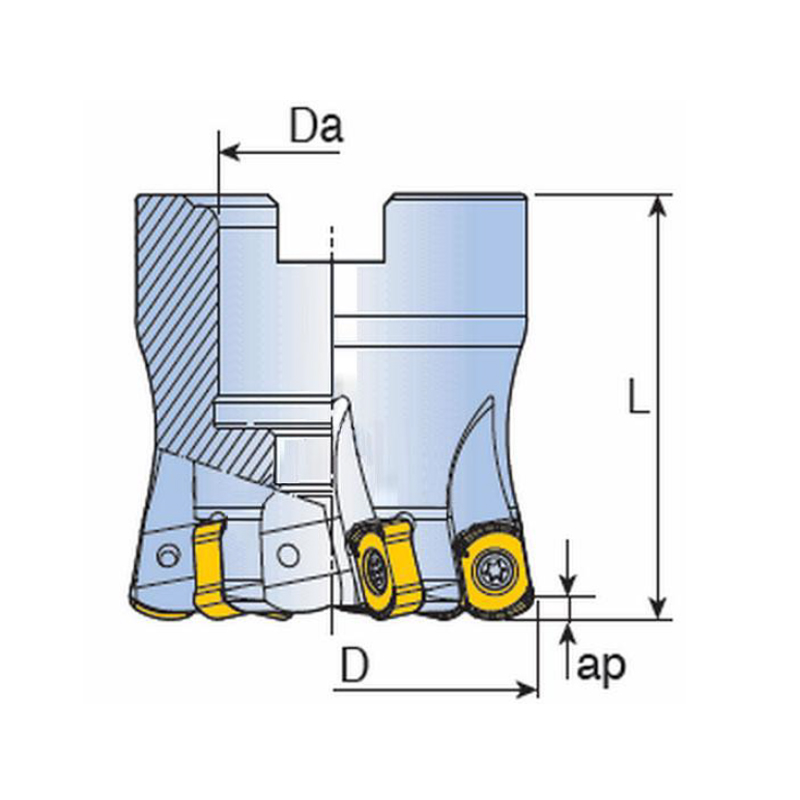

DIMENSIONEEE

CONNE

CTOR

INSERT

D

da

L

ap

TFMBL 432-16R-06

4

32

16

40

1.0

A

0. 1

BLMF 0603

TFMBL 532-16R-06

5

32

16

40

1.0

A

0. 1

TFMBL 640-16R-06

6

40

16

40

1.0

A

0.2

TFMBL 640-22R-06

6

40

22

40

1.0

A

0.2

TFMBL 650-22R-06

6

50

22

50

1.0

A

0.4

TFMBL 750-22R-06

7

50

22

50

1.0

A

0.4

TFMBL 850-22R-06

8

50

22

50

1.0

A

0.4

TFMBL 752-22R-06

7

52

22

40

1.0

A

0.4

TFMBL 852-22R-06

8

52

22

40

1.0

A

0.4

TFMBL 763-22R-06

7

63

22

50

1.0

A

0.6

TFMBL 863-22R-06

8

63

22

50

1.0

A

0.6

TFMBL 963-22R-06

9

63

22

50

1.0

A

0.6

TFMBL 966-27R-06

9

66

27

50

1.0

A

0.7

TFMBL 440-16R-09

4

40

16

40

1.5

A

0.2

BLMF 0904

TFMBL 540-16R-09

5

40

16

40

1.5

A

0.2

TFMBL 550-22R-09

5

50

22

50

1.5

A

0.4

TFMBL 650-22R-09

6

50

22

50

1.5

A

0.4

TFMBL 750-22R-09

7

50

22

50

1.5

A

0.4

TFMBL 652-22R-09

6

52

22

40

1.5

A

0.4

TFMBL 752-22R-09

7

52

22

40

1.5

A

0.4

TFMBL 663-22R-09

6

63

22

50

1.5

A

0.4

TFMBL 763-22R-09

7

63

22

50

1.5

A

0.4

TFMBL 863-22R-09

8

63

22

50

1.5

A

0.6

BLMF 0904

TFMBL 766-27R-09

7

66

27

50

1.5

A

0.7

TFMBL 866-27R-09

8

66

27

50

1.5

A

0.8

TFMBL 780-27R-09

7

80

27

50

1.5

A

1.2

TFMBL 880-27R-09

8

80

27

50

1.5

A

1.2

TFMBL 980-27R-09

9

80

27

50

1.5

A

1.2

TFMBL 1080-27R-09

10

80

27

50

1.5

A

1.2

TFMBL 8100-32R-09

8

100

32

60

1.5

A

2.3

TFMBL 9100-32R-09

9

100

32

60

1.5

A

2.3

TFMBL 10100-32R-09

10

100

32

60

1.5

A

2.3

TFMBL 11100-32R-09

11

100

32

60

1.5

A

2.3

TFMBL 12100-32R-09

12

100

32

60

1.5

A

2.3

TFMBL 12125-40R-09

12

125

40

60

1.5

A

2.7

TFMBL 14125-40R-09

14

125

40

60

1.5

A

2.7

EXEMPLUM

COCHLIA

CONVECTIO

TEBL-06

CSC2560

CTS08W

TEBL-09

CSC3581

CTS15W

EXEMPLUM

DIMENSION

CONNE

CTOR

kg

INSERT

D

da

L

ap

TFMBL 440-16R-11

4

40

16

40

2.0

A

0.2

BLMP 1105

TFMBL 450-22R-11

4

50

22

40

2.0

A

0.3

TFMBL 550-22R-11

5

50

22

40

2.0

A

0.3

TFMBL 552-22R-11

5

52

22

40

2.0

A

0.3

TFMBL 563-22R-11

5

63

22

50

2.0

A

0.7

TFMBL 663-22R-11

6

63

22

50

2.0

A

0.7

TFMBL 666-22R-11

6

66

22

50

2.0

A

0. 83

TFMBL 680-27R-11

6

80

27

60

2.0

A

1.4

TFMBL 780-27R-11

7

80

27

60

2.0

A

1.4

TFMBL 6100-32R-11

6

100

32

60

2.0

B

2.2

TFMBL 7100-32R-11

7

100

32

60

2.0

B

2.2

EXEMPLUM

COCHLIA

CONVECTIO

TEBL-11

CSD5012

CTS20W

INSERT

FIGURA

INTRODUCTIO

FAST CIBARIUM INDO

EXEMPLUM

ACIES

DIU'

DIMENSION

GRADUS

1

dl*

t

ap

Non pasce / DENTIUM

CAESA DEP.

CT5320

CT5420

CT9080

BLMP 0603R-M

06

9.0

6. 39

3. 73

1.0

0. 3-2. 5

0. 1-1.0

•

•

•

BLMP 0603R-MM

06

9.0

6. 39

3. 73

1.0

0. 3-2. 5

0. 1-1.0

•

•

•

BLMP 0904R-M

09

11.9

9. 18

4. 80

1.5

0. 3-3. 5

0. 1-1.5

•

•

•

BLMP 0904R-MM

09

11.9

9. 18

4. 80

1.5

0. 3-3. 5

0. 1-1.5

•

•

•

BLMP 1105R-ML

11

14.6

11.2

6. 54

2.0

0. 3-4.0

0. 3-2. 0

•

•

•

BLMP 1105R-M

11

14.6

11.2

6. 54

2.0

0. 3-4.0

0. 3-2. 0

•

•

•
