| EXEMPLUM | DIMENSIONE |
| |||||||||
| Dl | D2 | D3 | D4 | LI | L2max | L2min | V | L3 | G | Tyrus | |

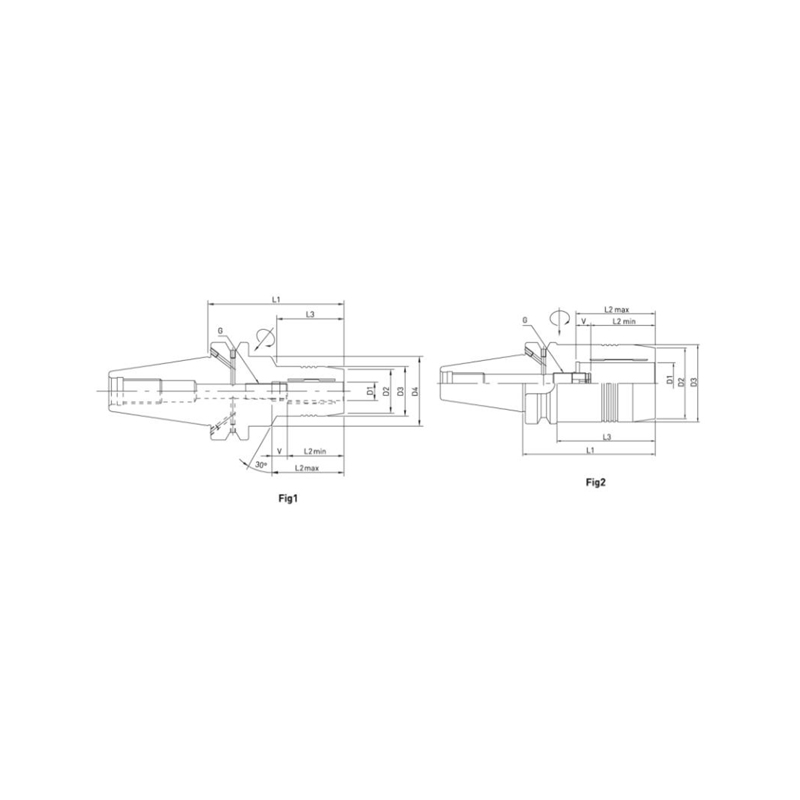

| BT40-CY06-65 | 6 | 25 | 28 | 50 | 65 | 37.5 | 27.5 | 10 | 23 | M5X0.8 | Figl |
| BT40-CY06-90 | 90 | 44 | |||||||||
| BT40-CY06-140 | 140 | 44 | |||||||||
| BT40-CY08-65 | 8 | 27 | 30 | 65 | 23 | M6X1.0 | |||||
| BT40-CY08-90 | 90 | 39 | |||||||||
| BT40-CY08-140 | 140 | 44 | |||||||||
| BT40-CY10-65 | 10 | 29 | 32 | 65 | 42.5 | 32.5 | 23 | M6X1.0 | |||
| BT40-CY10-90 | 90 | 44 | |||||||||
| BT40-CY10-140 | 140 | 44 | |||||||||
| BT40-CY12-65 | 12 | 31 | 34 | 65 | 47.5 | 37.5 | 23 | ||||
| BT40-CY12-90 | 90 | 44 | |||||||||
| BT40-CY12-140 | 140 | 44 | |||||||||
| BT40-CY14-65 | 14 | 33 | 36 | 65 | 23 | ||||||
| BT40-CY14-90 | 90 | 44 | |||||||||
| BT40-CY14-140 | 140 | 44 | |||||||||
| BT40-CY16-65 | 16 | 35 | 38 | 65 | 52.5 | 42.5 | 23 | M8X1.0 | |||
| BT40-CY16-90 | 90 | 48 | |||||||||
| BT40-CY16-140 | 140 | 48 | |||||||||
| BT40-CY18-75 | 18 | 38 | 41 | 75 | 30 | ||||||
| BT40-CY18-90 | 90 | 48 | |||||||||
| BT40-CY18-140 | 140 | 48 | |||||||||
| BT40-CY20-75 | 20 | 40 | 43 | 75 | 30 | ||||||
| BT40-CY20-90 | 90 | 48 | |||||||||
| BT40-CY20-140 | 140 | 48 | |||||||||
| BT40-CY25-100 | 25 | 53 | 57 | 100 | 61 | 51 | 73 | M16X1.0 | Fig2 | ||
| BT40-CY25-135 | 135 | 108 | |||||||||
| BT40-CY32-105 | 32 | 58 | 63 | 105 | 65 | 55 |
| ||||
| BT40-CY32-135 | 135 |
| |||||||||
| BT50-CY06-90 | 6 | 25 | 28 | 50 | 90 | 37.5 | 27.5 | 10 | 32 | M5X0.8 | Figl |
| BT50-CY06-120 | 120 | 44 | |||||||||
| BT50-CY06-140 | 140 | 44 | |||||||||
| BT50-CY08-90 | 8 | 27 | 30 | 90 | 32 | M6X1.0 | |||||
| BT50-CY08-120 | 120 | 40 | |||||||||
| BT50-CY08-140 | 140 | 44 | |||||||||
| BT50-CY10-90 | 10 | 29 | 32 | 90 | 42.5 | 32.5 | 32 | M6X1.0 | |||
| BT50-CY10-120 | 120 | 44 | |||||||||
| BT50-CY10-140 | 140 | 44 | |||||||||
| BT50-CY12-90 | 12 | 31 | 34 | 90 | 47.5 | 37.5 | 32 | ||||
| BT50-CY12-120 | 120 | 44 | |||||||||
| BT50-CY12-140 | 140 | 44 | |||||||||
| BT50-CY14-90 | 14 | 33 | 36 | 90 | 32 | ||||||
| BT50-CY14-120 | 120 | 44 | |||||||||
| BT50-CY14-140 | 140 | 44 | |||||||||
| BT50-CY16-90 | 16 | 35 | 38 | 90 | 52.5 | 42.5 | 32 | M8X1.0 | |||
| BT50-CY16-120 | 120 | 48 | |||||||||
| BT50-CY16-140 | 140 | 48 | |||||||||
| BT50-CY18-90 | 18 | 38 | 41 | 90 | 32 | ||||||
| BT50-CY18-120 | 120 | 48 | |||||||||
| BT50-CY18-140 | 140 | 48 | |||||||||
| BT50-CY20-90 | 20 | 40 | 43 | 90 | 32 | ||||||
| BT50-CY20-120 | 120 | 48 | |||||||||
| BT50-CY20-140 | 140 | 48 | |||||||||
| BT50-CY25-105 | 25 | 53 | 57 | - | 105 | 61 | 51 | 67 | M16X1.0 | Fig2 | |
| BT50-CY25-150 | 150 | 112 | |||||||||
| BT50-CY32-115 | 32 | 58 | 63 | 115 | 65 | 55 | 77 | ||||
| BT50-CY32-150 | 150 | 112 | |||||||||
Cum Plus XX annis assidua nostra turma nisus, in unum summum finem professio praebitorum et societatis in Sinis crevimus. Chai Secans instrumenta instrumentorum stricte procedendi ut protegendi et audiendi materiarum rudium praebitorum, ineuntes probationes materiales et comparationis materiales advenientes; Primae classis productio processus consilium et programmata moderatio singulas productorum magis stabilis et depravabilis efficiunt, et efficiens imperium efficiens obtinent. OEM/ODM available.
Sequentia notitia adiuvat ut plus intelligas:
ChaiTools specialiter in investigatione et progressu, consilio, productione, venditionibus et technicis subsidiis summus finis CNC tools est.
